Did you know that the Health and Safety Executive recorded at least 72 lateral overturns of telehandlers over a seven-year period? It's a sobering figure that highlights why understanding your machine's limits is more than just a matter of efficiency. Many site managers naturally focus on maximum lift height, yet it's often the 12m telehandler outreach that presents the greatest challenge when navigating obstacles or placing loads across a void. You might feel uncertain about whether a machine can safely clear a structure or worry about stability at full extension. We understand those concerns.
This guide will help you master the technical specifications of your equipment to ensure site safety, optimal machine placement, and efficient material handling. We'll examine the horizontal reach envelope, clarify the difference between height and outreach, and provide the knowledge you need to maintain a firm safety margin during every forward extension. By the end of this article, you'll have the confidence to select the right machine for the task and manage your site with the quiet certainty of a seasoned professional.
Table of Contents

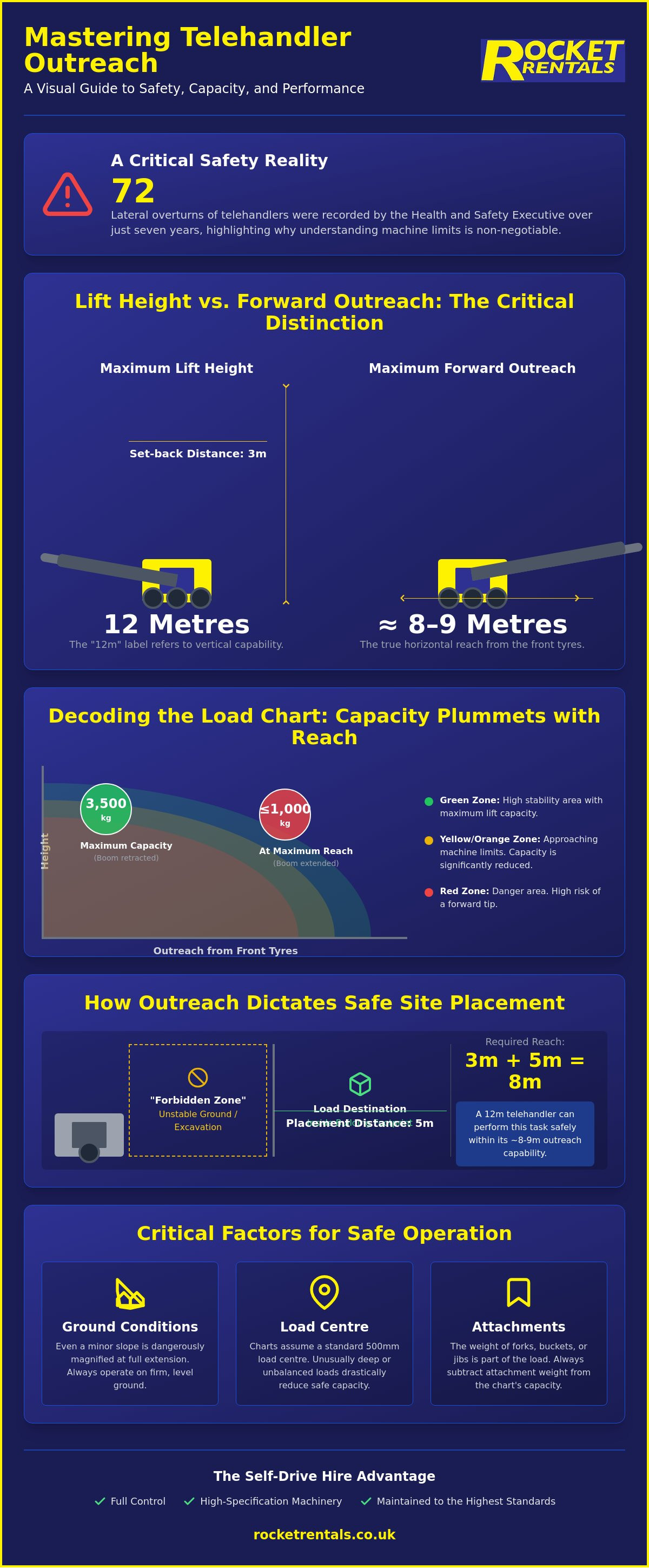

Understanding 12m Telehandler Outreach and Lift Capabilities
When selecting plant for a project, the "12m" label on a machine can be slightly misleading for those focused on horizontal tasks. While this figure refers to the maximum vertical lift height, 12m telehandler outreach describes the maximum horizontal distance the boom can extend forward from the front tyres. A Telescopic handler is a masterpiece of engineering, but it's bound by the uncompromising laws of leverage. As the boom extends further away from the machine's centre of gravity, the potential for instability increases. This is why the horizontal reach is always shorter than the vertical height.
The relationship between the boom angle and extension creates a specific "reach envelope". At a steep angle, the machine can lift heavy loads to its maximum height with ease. However, as the boom lowers toward the horizon to reach over an obstacle, the leverage exerted on the chassis grows. This necessitates a reduction in the Safe Working Load (SWL). Understanding this dynamic is vital for any operator. You aren't just managing a height; you're managing a shifting balance point that dictates exactly how much weight can be safely suspended at a specific distance.
Forward Reach vs Lift Height: The Critical Distinction
Height is often easier for a machine to achieve because the weight of the load remains largely over the stable footprint of the chassis. Outreach is different. Gravity and leverage work together to pull the front of the machine down. In a typical scenario, such as reaching over a deep trench to place a pallet of bricks, you'll find that a standard 12m machine provides a maximum forward reach of approximately 8 to 9 metres. This distinction is vital during the planning phase. If your task requires placing materials 10 metres away from the machine's front tyres, a 12m telehandler will likely lack the necessary reach, regardless of its vertical capabilities.
Why Outreach Dictates Machine Placement on Site
Safe machine placement is rarely about being as close as possible to the target. Site managers must account for "forbidden zones" near excavations, fragile ground, or underground services where a heavy machine cannot sit. This set-back distance directly consumes your available 12m telehandler outreach. For example, if safety protocols require you to stay 3 metres back from a foundation trench, and the load must be placed 5 metres into the building footprint, you require 8 metres of reach. By calculating these distances accurately before the machine arrives, you ensure the telehandler can be positioned on stable, level ground whilst still reaching its destination without exceeding its safe capacity.
Decoding the Load Chart: Capacity at Maximum Extension
A telehandler's lift capacity isn't a fixed figure; it's a sliding scale that shifts with every centimetre of boom movement. While a machine might be rated for 3,500kg, this maximum capacity only applies when the boom is retracted and at a high angle. As you push the boom forward to utilise the full 12m telehandler outreach, the laws of physics dictate a sharp decline in what you can safely carry. By the time you reach maximum horizontal extension, that 3.5-tonne capacity often drops to around 1,000kg or less.
Most modern load charts use colour-coded zones to simplify these complex calculations for the operator. Green zones indicate areas of high stability, whilst orange or yellow sections signal that you're nearing the machine's limits. Red zones represent the danger area where the risk of a forward tip is high. You must also remember that the weight of the attachment, whether it's standard forks or a specialised bucket, must be subtracted from the chart's indicated capacity. To help manage these risks, modern machines include a Longitudinal Load Moment Indicator (LLMI), which acts as a technical "safe pair of hands" by warning the operator as the machine's centre of gravity moves too far forward.
How to Read a Telehandler Load Chart Correctly
Reading the chart involves finding the intersection between the X-axis, which shows the distance from the front tyres, and the Y-axis, which indicates height from the ground. The most restrictive point on the chart is the "weight at tip" when the boom is fully horizontal. The load centre is the horizontal distance from the vertical face of the forks to the centre of gravity of the load, typically standardised at 500mm for most UK construction applications. If your load is deeper than this, your safe capacity will be lower than the chart suggests.
The Impact of Stabilisers on Outreach Performance
For a 12m machine, the difference between working "on tyres" and "on stabilisers" is significant. Tyres are made of rubber and contain air, meaning they flex under load, which can lead to slight swaying at full extension. Deploying stabilisers creates a wider, rigid footprint that anchors the chassis firmly to the ground. This stability is paramount when pushing the 12m telehandler outreach to its technical limit. Many 12m models actually require stabilisers to be deployed before you can access the outer reaches of the load chart safely. If you're planning a project that requires precision at distance, choosing high-spec telehandler hire ensures you have a modern machine with reliable stabiliser systems and clear, accurate load charts.
Comparing 12m Outreach Performance with Alternative Models
For many site managers, the 12m model represents the "sweet spot" of plant hire. It provides a significant step up from compact models without the logistical burden of heavy-duty machines. When evaluating 12m telehandler outreach, you're looking at a machine that can comfortably service three-storey developments whilst remaining agile enough to navigate a busy residential site. It strikes a fine balance between reach and footprint, making it a staple on modern construction projects.
Transportability is a major factor here. A 12m machine is typically easier to move than 14m or 17m alternatives, which often require more complex haulage arrangements. For standard groundworks where the goal is placing blocks or mortar across a foundation, the cost-to-reach ratio of a 12m model is often the most efficient choice. If you're working on smaller material movement tasks or tight excavations, mini excavator hire might be a better companion to keep your site moving, allowing the telehandler to focus on high-reach tasks.
12m vs 9m: When to Upgrade Your Hire
The jump from a 9m to a 12m machine is most noticeable in the horizontal plane. While the 3-metre vertical difference is clear, the additional 12m telehandler outreach allows you to place loads much further into a building's footprint. On multi-storey projects, this extra reach is essential for reaching the second floor from a safe set-back distance. Despite this increased capability, the chassis size of most 12m models remains relatively compact, ensuring you don't lose too much manoeuvrability in tight spaces. If your site plan requires placing materials over a scaffolding lift or across a wide trench, the upgrade to a 12m machine is often non-negotiable.
12m vs 14m: Evaluating the Reach Gap
There are specific scenarios where a 12m machine might fall short. If you need to reach the far side of a wide foundation or work across significant site obstacles, a 14m model provides that vital extra metre of horizontal extension. For instance, where a 12m machine might offer 1,000kg of capacity at 8 metres, a 14m model might handle 1,200kg at 9 metres. If your lift plan indicates you'll be operating at the absolute limit of a 12m machine's load chart, it's always safer and more efficient to hire a larger machine with a broader safety margin. This proactive approach ensures you're never pushing the equipment to a point where stability could be compromised.
Operational Planning for Safe Maximum Outreach
Planning for a lift requires more than just checking the load chart. It involves a thorough assessment of the environment where the machine will operate. When you utilise the full 12m telehandler outreach, you're placing immense trust in the ground beneath the machine. A level standing area is non-negotiable. Even a slight slope of just one or two degrees at the chassis is significantly magnified when the boom is extended 8 metres forward. This leverage can shift the machine's centre of gravity dangerously close to the tipping point, making precision placement nearly impossible and increasing the risk of a lateral or forward overturn.
Smooth operation is equally vital for safety. Sudden braking or rapid boom movements create a "dynamic load" effect. This momentarily increases the force exerted on the machine beyond the actual weight of the material being carried. Operators should always aim for fluid, controlled movements, especially when the boom is near its horizontal limit. Regular pre-use inspections on all hired plant are essential to ensure that safety systems like the Longitudinal Load Moment Indicator (LLMI) are functioning perfectly. If you need a reliable machine for your next project, you can book your telehandler hire from our modern, well-maintained fleet today.
Ground Conditions and Bearing Pressure
As the boom extends, the machine's weight shifts dramatically from a balanced position to being concentrated almost entirely on the front axle or stabilisers. This concentrated pressure can cause softer ground to give way. Using high-quality spreader plates is a standard professional practice to distribute this weight over a larger area. Before positioning the machine, always consult site surveys to identify underground services or voids that could collapse under the significant bearing pressure of a loaded 12m telehandler.
Environmental Factors: Wind Speed and Visibility
High winds present a unique danger when working at maximum outreach. Large loads, such as timber packs or insulation, can act like a sail, catching the wind and exerting lateral force on the extended boom. This "sail effect" can easily pull a machine off-balance. Visibility also becomes a challenge; when the boom is low and fully extended, the operator's view of the landing area is often restricted by the machine's own structure. We always recommend using a trained signaller or banksman to guide the operator during these high-reach manoeuvres, ensuring the load is placed safely and accurately every time.
Sourcing Reliable 12m Telehandler Hire for Your Project
Selecting the right equipment is only half the battle; the reliability of your hire partner is what ensures the project stays on schedule and within safety parameters. At Rocket Rentals, we specialise in providing modern, high-specification 12m telehandlers that are meticulously prepared for the rigours of professional site work. We understand that for seasoned contractors, self-drive hire is often the preferred choice. It offers full control over the machine’s operation and scheduling, allowing your team to work with the autonomy required for complex tasks. Our commitment to safety means every machine in our fleet undergoes rigorous checks, ensuring that when you push that 12m telehandler outreach to its planned limit, the equipment performs exactly as the manufacturer intended.
To complement your lifting operations, we also provide a comprehensive range of excavator hire South West. Having a matched fleet of high-quality plant on site, from diggers to telehandlers, streamlines maintenance and ensures consistent standards of safety and efficiency across your entire project. This integrated approach to plant sourcing reduces the administrative burden on site managers and ensures that all machinery arrives with the same high standard of maintenance and readiness.
The Benefits of Modern Fleet Hire
Newer machines offer more than just aesthetic improvements. In a modern 12m model, electronic load monitoring systems are far more precise than those found in older machinery. This accuracy is vital for maintaining load chart integrity during maximum outreach. Additionally, modern engines provide significantly better fuel efficiency and lower emissions, helping you meet environmental standards without sacrificing power. Well-maintained hydraulics are equally important; they provide the smooth, predictable control needed for the subtle boom adjustments required when placing materials at distance.
Organising Your Self-Drive Hire with Rocket Rentals
We've refined our hire process to be as direct and efficient as possible. We know that site managers don't have time for unnecessary delays, so we focus on clear communication regarding technical specifications and machine availability. It's essential to partner with a provider that understands the technical nuances of your site requirements, from ground bearing pressure to specific reach envelopes. Our team acts as a knowledgeable guide, ensuring you have the right machine for the specific challenges of your project. If you're ready to secure high-quality plant for your next job, you can explore our 12m telehandler hire options today and experience the reliability of a safe pair of hands.
Optimising Your Next Project with Precision Outreach
Mastering the technical nuances of 12m telehandler outreach is a vital skill for any site manager or operator. You now understand that horizontal reach is the true measure of a machine's utility when navigating complex site obstacles. By correctly interpreting load charts and prioritising level ground, you'll ensure that every lift remains within the safe working envelope. This technical knowledge doesn't just improve efficiency; it provides the peace of mind that comes from knowing your site's operating safely.
As an independent UK plant hire specialist since 1988, Rocket Rentals acts as your safe pair of hands. We provide a modern, high-performance fleet and offer expert technical support to help you plan even the most challenging projects with confidence. Our commitment to thorough machine preparation means you don't have to worry about equipment reliability when it matters most.
View our 12m Telehandler Hire Range and secure the right machinery for your site today. We look forward to helping you achieve a safe and successful build.
Frequently Asked Questions
What is the maximum forward reach of a 12m telehandler?
A standard 12m telehandler typically offers a maximum forward reach of approximately 8 to 9 metres from the front tyres. It's vital to remember that while the machine can lift to 12 metres vertically, the horizontal extension is limited by the laws of leverage. You should always consult the specific load chart for your model to confirm the exact reach envelope before starting work on site.
How much weight can a 12m telehandler lift at full outreach?
At full extension, the lift capacity of a 12m machine drops significantly, often to 1,000kg or less. This is a dramatic reduction from the machine's maximum rated capacity, which usually applies only when the boom is retracted and at a high angle. You must always account for the weight of the forks or attachment when calculating your safe working load at these distances.
Do I need a special licence to operate a 12m telehandler on a self-drive basis?
There is no official government driving licence required for self-drive plant hire on private sites, but operators must be trained and competent. Most professional UK contractors require certifications from schemes such as the Construction Plant Competence Scheme (CPCS) or the National Plant Operators Registration Scheme (NPORS). Employers have a legal duty to ensure all staff are properly trained before using the equipment.
Can a 12m telehandler reach over a standard house roof?
A 12m telehandler can generally reach over the roof of a standard two-storey house, provided the machine is positioned correctly. Success depends on the set-back distance from the building and the height of the roof ridge. If you need to place materials on the far side of the structure, you should carefully calculate the required 12m telehandler outreach to ensure the load remains within the safe capacity zone.
What is the difference between a 12m telehandler and a 12m boom lift?
The primary difference lies in their intended use; a telehandler is a versatile material handler, whilst a boom lift is a Mobile Elevating Work Platform (MEWP) designed to lift personnel. Telehandlers feature much higher lift capacities for moving pallets or buckets. Conversely, boom lifts offer more complex articulation for positioning workers in tight spaces but have very limited weight capacities, usually only enough for two people and their tools.
How do stabilisers affect the outreach of a 12m machine?
Deploying stabilisers significantly enhances 12m telehandler outreach by providing a wider and more rigid footprint. This reduces the flex and sway associated with rubber tyres, allowing the machine to safely access the outer limits of its load chart. On many 12m models, the manufacturer's safety systems will actually prevent the boom from reaching full horizontal extension unless the stabilisers are firmly deployed on level ground.
What should I do if the load moment indicator (LMI) starts beeping?
If the Load Moment Indicator (LMI) triggers an alarm, you must stop all boom movements immediately. This warning indicates that the machine is nearing its stability limit and is at risk of tipping forward. You should carefully retract the boom or raise its angle to bring the load's centre of gravity back towards the chassis before attempting to reposition the machine more safely.
Is a 12m telehandler suitable for use on rough terrain?
Telehandlers are specifically engineered for rough terrain and are equipped with four-wheel drive and high ground clearance to navigate unfinished construction sites. They can handle mud, gravel, and uneven surfaces with ease. However, you must always ensure the machine is positioned on a firm, level area before extending the boom, as working on a slope significantly compromises stability and reduces your safe outreach capacity.
